SMD蜂鸣器
|
|
| 型号︰ | SMD-085030H |
| 品牌︰ | LUCKYWELL |
| 原产地︰ | 中国 |
| 单价︰ | CNY ¥ 0.99 / 件 |
| 最少订量︰ | 1 件 |
|
|
|
|
|
|
|
| Type |
SMD-085030H-03627 |
| Oscillation Frequency |
2731±500 Hz |
| Operating Voltage |
2~4V |
| Rated Voltage |
3.6V |
| Current Consumption |
80 mA max at 3.6 Rated Voltage |
| Sound Pressure Level |
85dB min at 10cm at 3.6 Rated Voltage |
| Coil Resistance |
16±3Ω |
| Dimension |
8.5 x 8.5 x H3.0 mm |
| Housing Material |
LCP |
|
|
|
|

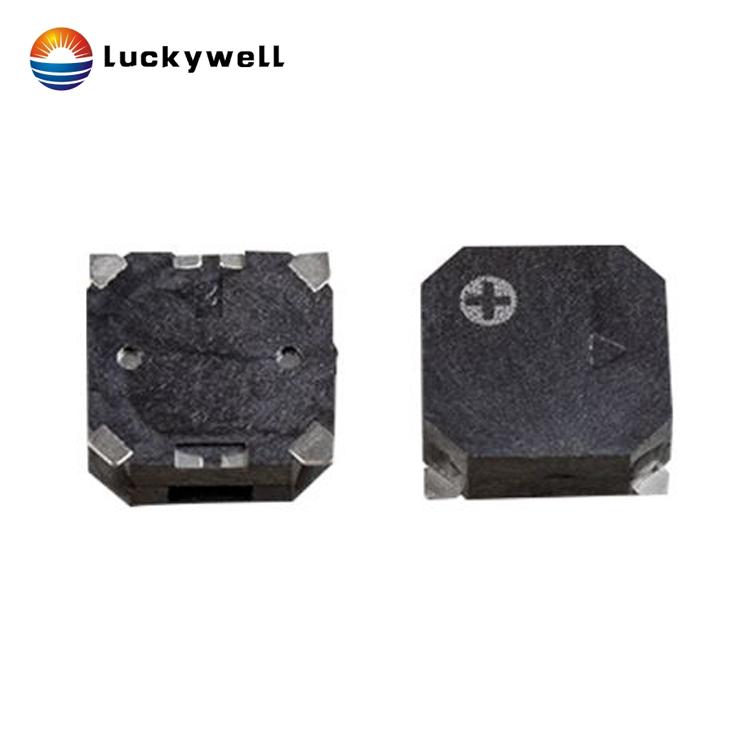

产品图片
|
|
|
|
|
|
|
|
|
|
